Create Live Encoding Session
To create a new Offline or Live encoding session, on the Encoding page click the + New Encoding Session to launch the wizard to walk you through the creation.
The user can navigate back and forth by using the Back and Next buttons, without losing any changes, until they either click Cancel or Save on the last page.
1. Select Type
This section allows the user to provide:
| Parameter | Required | Description |
|---|---|---|
| Name | yes | Provide a name for the encoding session |
| Description | no | Provide a description for the encoding session |
| Cover Graphic | no | Provide a cover graphic that can be displayed on the encoding page and as the background of the video preview when not being used |
The next section allows the user to select the desired Session type.

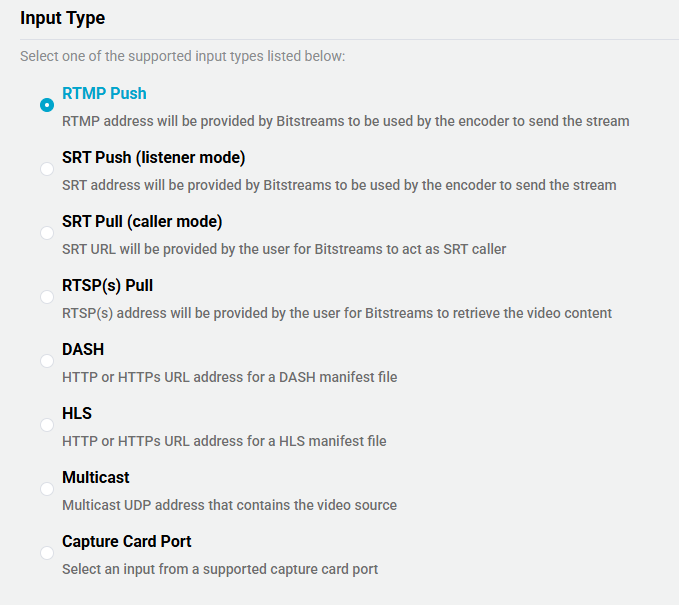

2. Input Type
Select one of the supported input types, and enter in the URL address, if required
| Parameter | Input URL | Note |
|---|---|---|
| RTMP Push | no | |
| SRT Push (Listener Mode) | no | |
| SRT Pull (Caller Mode) | yes | SRT stream ID has to be properly URL-encoded |
| RTSP(s) Pull | yes | RTSP Syntax Examples |
| DASH | yes | |
| HLS | yes | |
| Multicast | yes | Multicast Syntax Examples |
3. Output Type
Using the drop down option, select the desired output type and click + Add Output. Multiple output types can be added to the same input, after all desired outputs are added and configured, click Save to continue. If more than one output has been configured, a trash can icon will be added to each output. This will allow the output to be removed.

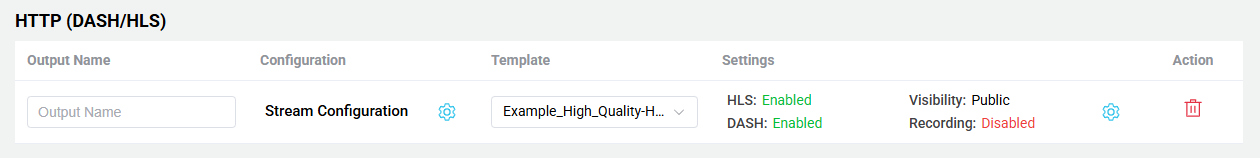

DASH/HLS Output
| Parameter | Required | Description |
|---|---|---|
| Output Name | Yes | Provide a name for the output. |
| Stream Configuration | No | Only applies when the input is Multicast/UDP. Open a dialog box to configure the Service Provider Name and to enable Stream Mapping |
| Template | Yes | Select the desired Template |
| Settings | Yes | Used to enable DASH and/or HLS outputs and VOD Recording. Hover over the cell and click the gear icon to enable or disable DASH, HLS, Visibility and VOD Recording. |
Stream Configuration only applies when the input is UDP/Multicast
Visibility
Used in conjunction with Signing Keys.
Public: No signing key required to access the stream
Private: Signing Key is required to access the stream
RTMP Push
| Parameter | Required | Description |
|---|---|---|
| Output Name | Yes | Provide a name for the output. |
| Template | Yes | Select the desired Template |
| Output URL | Yes | Each output resolution requires a different and unique address. |
SRT Push
Currently SRT Push only operates in caller mode.
| Parameter | Required | Description |
|---|---|---|
| Output Name | Yes | Provide a name for the output. |
| Template | Yes | Select the desired Template |
| Output URL | Yes | Each output resolution requires a different and unique address. For details on adding a streamid see SRT Syntax |
Multicast/UDP
| Parameter | Required | Description |
|---|---|---|
| Output/Service Name | Yes | Provide a name for the output. This parameter also configures the Service Name |
| Service Provider Name | No | Only applies when the input is NOT Multicast/UDP Add the Stream Provider Name to the output MPEGTS Transport. If this field is not populated then Bitstreams Edge will be used. |
| Stream Configuration | No | Only applies when the input is Multicast/UDP. Open a dialog box to configure the Service Provider Name and to enable Stream Mapping |
| Template | Yes | Select the desired Template |
| Output URL | Yes | Each output resolution requires a different and unique address. For more details on Multicast UDP Syntax |
File
This feature allows for the continuous recording of the input stream. The recording process continuously creates new files based on the Max File Duration parameter.
Bitstreams does not manage the storage space on the server, the user must ensure there is enough storage and it is recommended to mount an external drive to the /mnt folder on the server.
| Parameter | Required | Description |
|---|---|---|
| Output Name | Yes | Provide a name for the output. |
| Template | Yes | Select the desired Template |
| Format | Yes | Select the output container format of the recorded files |
| Max File Duration (seconds) | Yes | Select how long each output file will be before a new file is created |
| Location Path | Yes | Select the location where the files will be saved, within the /mnt directory. |
The output file directory will automatically be created along with subdirectories to help easily find recordings based on the date the recording occurred.
Bitstreams does not manage the storage space on the server, the user must ensure there is enough storage and it is recommended to mount an external drive to the /mnt folder on the server.
Once the session has been created, the user will be redirected to the Encoding Details page.
