Create a Template

Create a new template can be started by clicking the + Create New Template button on the top right hand corner, which will open a wizard to walk the user through creating a new template.

The user can navigate back and forth by using the Back and Next buttons, without losing any changes, until they either click Cancel or Save on the last page.

1. Template Details

This section allows the user to provide:

• Name (required)
• Description (optional).
• Set as Default.
  warning

  Only one template can be set as the default. This option allows for this template to be the first one listed on any setting that allows the selection of a template.

2. Video Details

Parameter	Required	Value range	Description
Codec	Yes	H264, H265, AV1	Video encoding format
Bitrate	Yes	100-100000	Video bit rate in kbps
Frame Rate	Yes	1-120	Frame rate used for the output video, see warning message below
Resolution	Yes	Various	Select the desired Output Resolution

warning

Currently Bitstreams does not increase the framerate. The output framerate will be the lower of either the input framerate or the configured framerate in the template.

For example:

1. If the input framerate is 30 fps and the template is configured for 60 fps, then the output framerate will be 30 fps.
2. If the input framerate is 60 fps and the template is configured for 30 fps, then the output framerate will be 30 fps.

Add Custom Value

If the desired frame rate and/or resolution are not present in the drop down list, then the user open the dropdown and then click Add a Custom Value, to enter in a new value and click Confirm. Hover the mouse over the desired field to reveal the possible options.

Add Additional Resolutions

At the bottom of the table, click the + Add Output to add an additional output.

note

The outputs are automatically sorted based on resolution (highest to lowest), then bitrate (highest to lowest), then framerate (highest to lowest) when the encoding session has been started.

Delete a Resolution

Use the Trash Can icon at the end of the row of the desired resolution that needs to be removed.

3. Audio Details

If the template does not contain any audio tracks, then all audio tracks will be passed through.

Add Additional Audio

At the bottom of the table, click the + Add Output to add an additional output.

Parameter	Required	Value range	Description
Input Index	Yes	Audio stream selection index	Selects the audio stream to use
Language	Yes	ISO 639-2B Language code or "copy"	Sets the language code for the audio output
Default Language	Yes	ISO 639-2B Language code or "copy"	Sets the default language code for the audio output
Codec	Yes	AAC, AC3, Copy	Audio encoding format. If this parameter is configured for copy, the audio will be configured for passthrough
Profile	Yes	AAC-LC, AAC-HE, AAC-HEv2	AAC-LC - Low-Complexity AAC-HE - High-Efficiency AAC-HEv2 - High-Efficiency v2
Channel	Yes	0-8	Number of audio channels per audio stream. 0 - Use source stream settings 1-8 - number of audio channels to use up till the supported max of 8 channels
Bitrate	Yes	20-320	Audio bit rate in kbps
Sample Rate	Yes	96k, 88.2k, 64k, 48k, 44.1k, 32k, 24k, 22.05k, 16k, 12k, 11.025k, 8k, 7.35k	Target audio sampling rate

note

Only the specified Audio tracks, based on the input index will be used, all other audio tracks will be ignored.
When the output is multicast/UDP, then each output resolution will include the configured audio tracks, plus any DVB Subtitles and/or Teletext PIDs.

Delete an Audio

Use the Trash Can icon at the end of the row of the desired audio that needs to be removed.

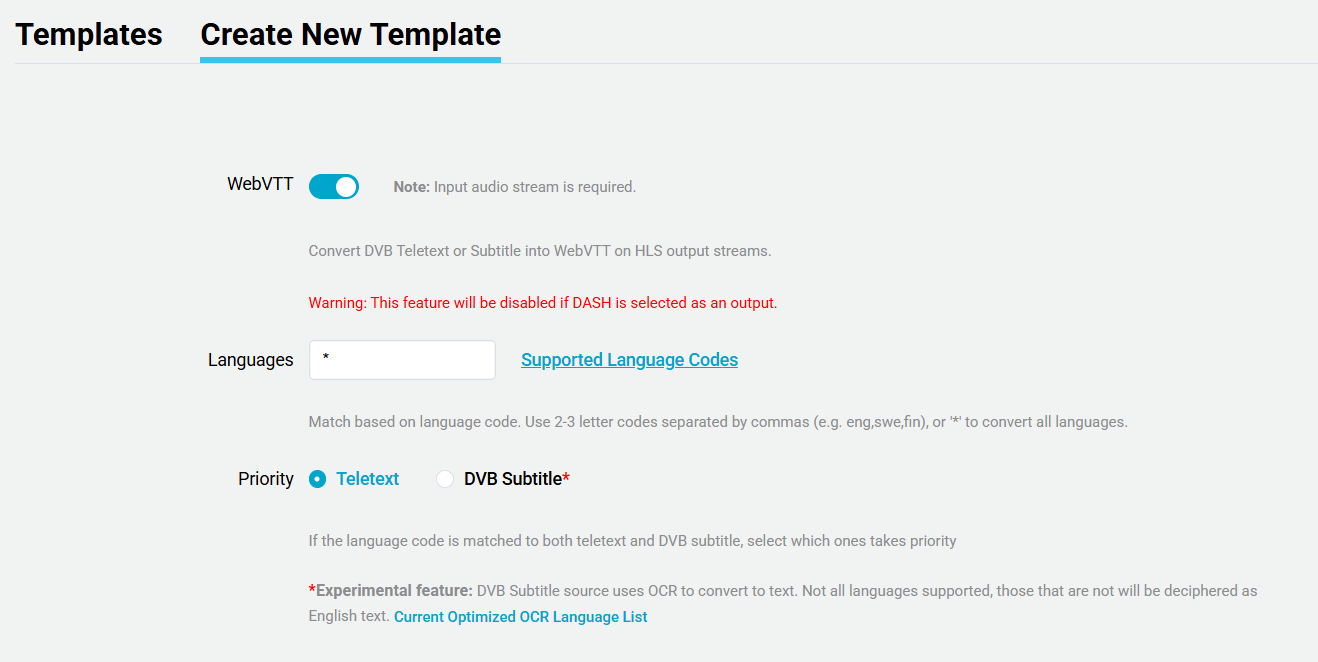

4. Subtitles

When the output is configured for HLS and the input has a teletext stream, Bitstreams can convert to WebVTT for subtitles.

The user can enter in a single audio language descriptor or a list separated by a commas. If an * is used then all the telext languages will be converted to WebVTT.

info

At least one audio stream needs to be present for this feature to work.

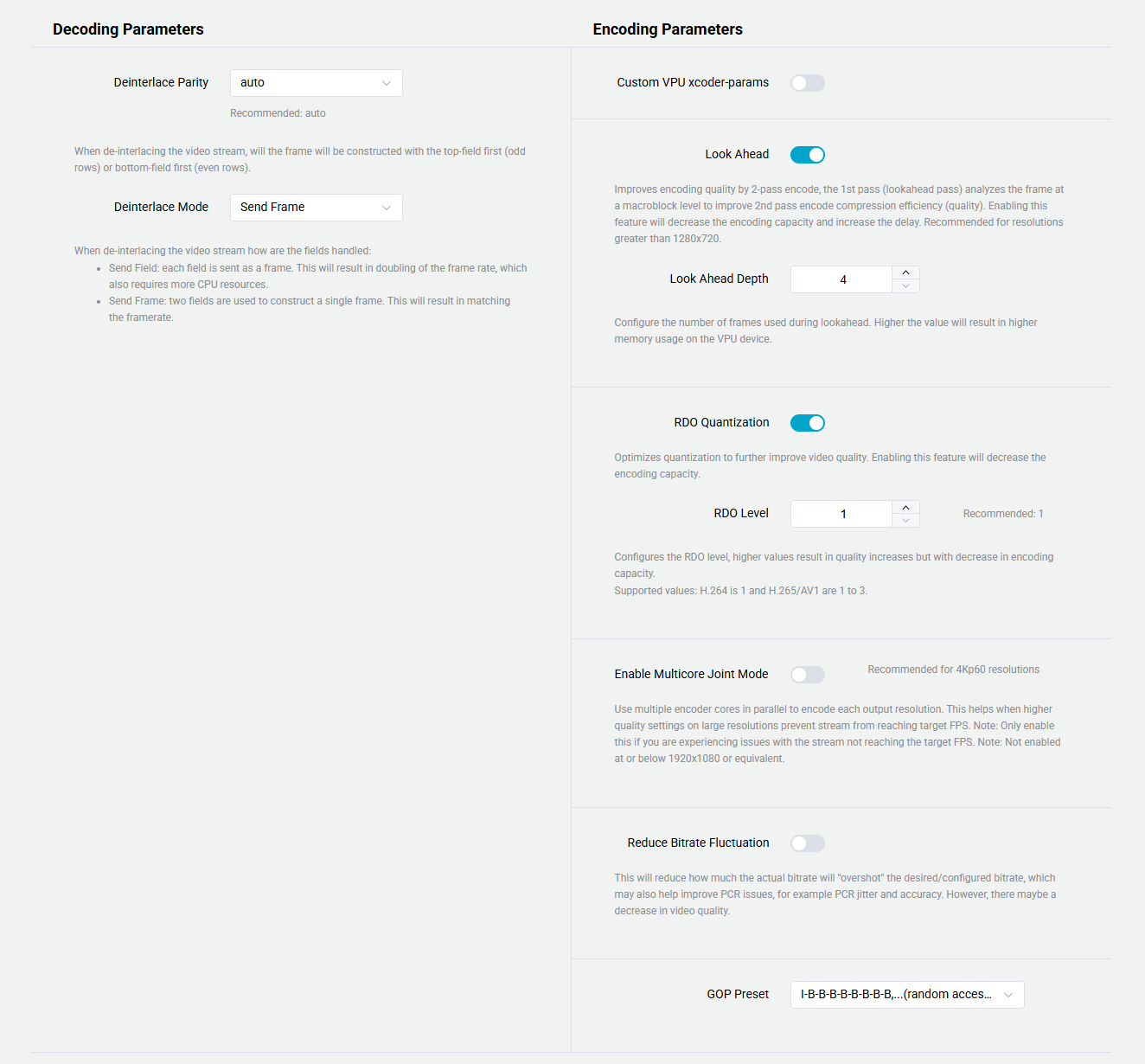

5. Advanced Details

The advance parameters are divided into two sections:

• Decoding Parameters
• Encoding Parameters

Decoding Parameters

The decoding parameters are to configure how the Host CPU will hand de-interlacing of the input streams.

Parameter	Required	Value range	Description
Deinterlace Parity	yes	auto, tff, bff	When de-interlacing the video stream, will the frame be reconstructed using the top-field first (odd rows) or bottom-field first (even rows).
Deinterlace Mode	yes	Send Frame, Send Field	When de-interlacing the video stream how are the fields handled: Send Field: each field is sent as a frame. This will result in doubling of the frame rate, which also requires more CPU resources. Send Frame: two fields are used to construct a single frame. This will result in matching the framerate.

Encoding Parameters

Parameter	Required	Value range	Description
Custom VPU xcoder-params	no	various	Provide custom xcoder params for encoding.
Look Ahead	Yes	On/Off	Look ahead encoding optimizes video compression by analyzing future frames before encoding the current frame.
Look Ahead Depth	Yes	4-40	Specifies the number of future frames to analyze.
RDO Quantization	No	On/Off	Enables or disables Rate-Distortion Optimization Quantization for better video quality at the cost of decreased capacity.
RDO Level	No	1, 2, 3	Specifies the Rate-Distortion Optimization level for H.265 and AV1 encoding. Higher levels provide better quality at the cost of decreased capacity.
GOP Preset	No	various	Configures the GOP Structure based on the codec, Lookahead and RDO.

WARNING: Custom VPU xcoder-params

Requires knowledge of the Quadra Encoding parameters.
NOTE: incorrect parameters and values may result in the encoding session to fail without any error message. Use with caution.

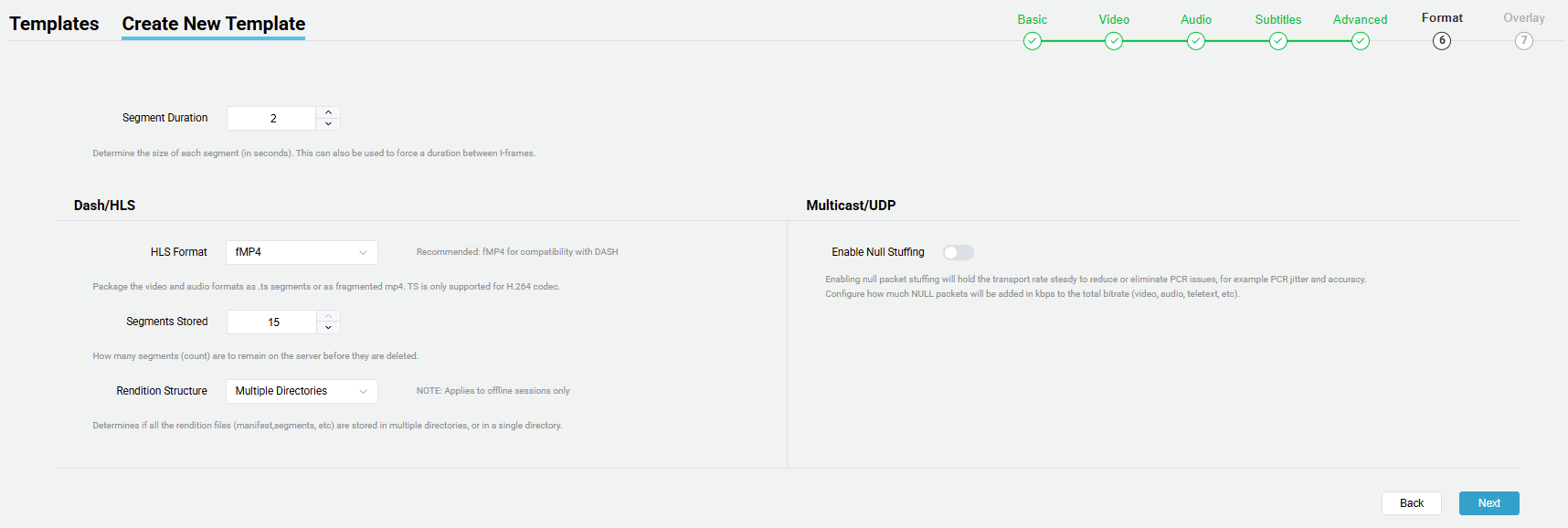

6. Format

Parameter	Required	Value range	Description
HLS Format	yes	TS, fMP4	Package the video and audio formats as .ts segments or as fragmented mp4. TS is only supported for H.264 codec.
Segments Stored	yes	2-15	How many segments (count) are to remain on the server before they are deleted.
Segment Duration	yes	2-20	Determine the size of each segment (in seconds). This can also be used to force a duration between I-frames.
Rendition Structure	no	Single Multiple	Determines if all the rendition files (manifest,segments, etc) are stored in multiple directories, or in a single directory. NOTE: Applies to offline sessions only

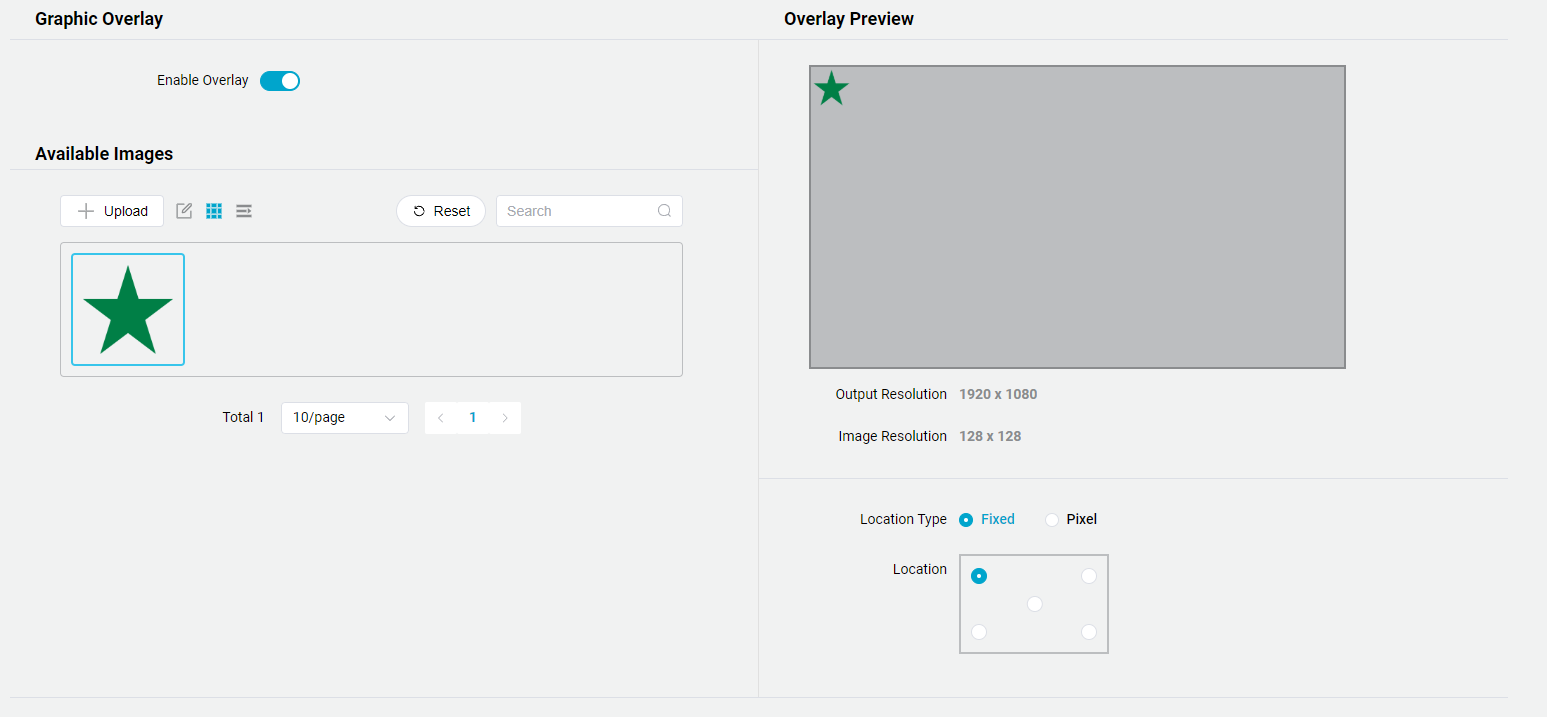

7. Overlay

This feature, when enabled, allows for an image to be overlaid onto the video stream.

Available Images

Displays a preview of all the images that have been uploaded to the server. The User can selected the desired image by clicking on the image. The user can also use the search field to easily find the desired image.

Parameter	Required	Description
Upload	No	Button to upload new images to the system. Supports jpg/jpeg/png/bmp files with a size less than 2MB. Max resolution is 480px, min is 32px.
Image	No	Specifies the image to use as an overlay, by selecting from previously uploaded images.
	-	Allows the ability to delete an image, by clicking on the trash can (table view) or the red "x" on the image (thumbnail view)
	-	View all the available images as a thumbnail
	-	View all the available images as a table, includes the filename, upload time and resolution.

Overlay Preview

Displays a preview of where the overlay image will be located, based on the highest resolution in the template. Only displayed after an image has been selected.

When the overlay position is adjusted the preview will be updated to reflect the location.

Parameter	Required	Value range	Description
Output Resolution	-	-	Highest available resolution in the template
Image Resolution	-	-	Resolution of the selected image
Location Type	Yes	Fixed	Fixed, Pixel
Location	Yes	-	Fixed - specify location in one of the 4 corners or the center Pixel - use x and y offsets to specify the image location

INFO - Pixel offset

Horizontal (X) and vertical (Y) offsets for the logo position from the top left of the video.
